AGM Taipan TM19-384
Original price was: $1,674.00.$1,400.00Current price is: $1,400.00.
-
Description
DESCRIPTION AND FEATURES

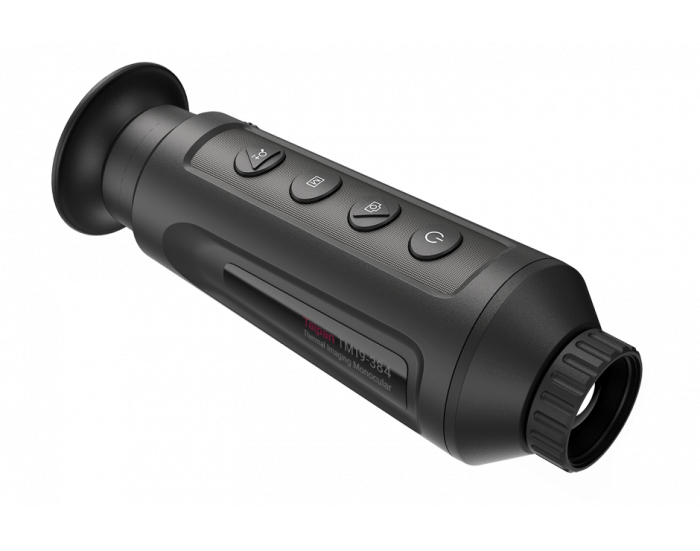

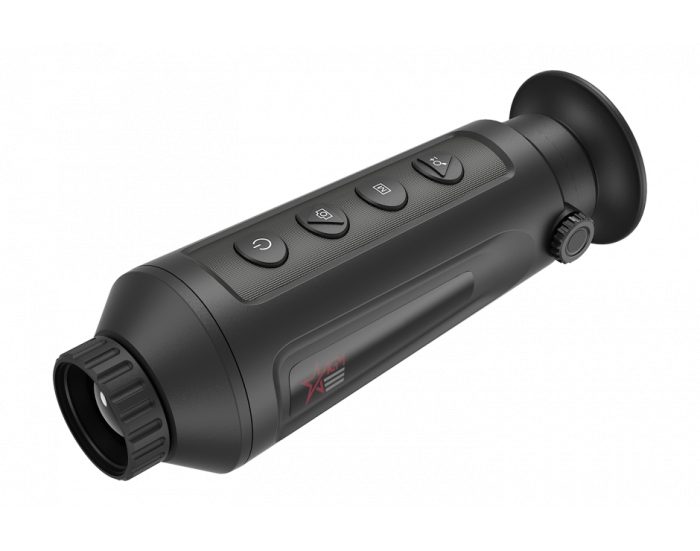

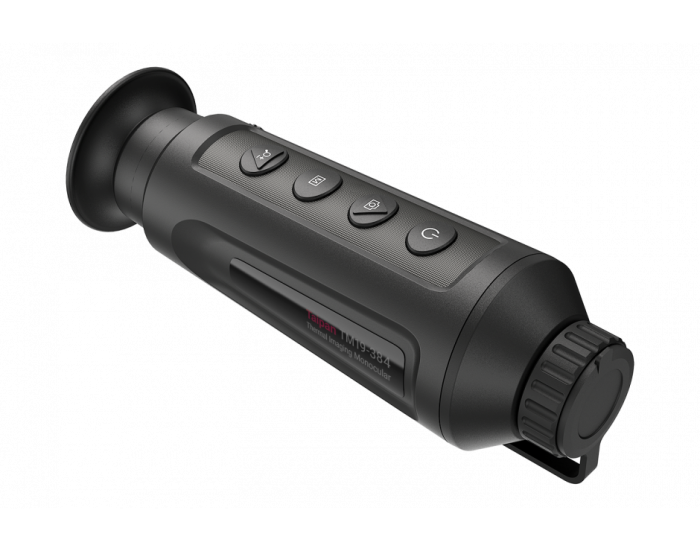

The Taipan handheld observational thermal monocular is equipped with a 384×288 infrared detector and a 1280×960 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.
FUNCTIONS:
Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot capturing.
Digital Zoom:
Device supports 1×, 2×, 4×, and 8× digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.
- 384×288 resolution, 12 μm, high sensitivity detector/
- Adaptive AGC, DDE, 3D DNR
- 1280 × 960 resolution 0.4-inch LCOS display
- Built-in rechargeable Lithium battery
- More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
- Wi-Fi hotspot
- Type-C interface
- Limited 3-year warranty
SPECIFICATIONS
Interface – USB Type-C
Pixel Interval – 12 μm
Multi Language menu – Yes
Drop Test Height – 1.5 m (4.9 feet)
Detector type – Vanadium Oxide Uncooled Focal Plane Arrays
Response Waveband – 8μm to 14μm
FFC (Flat Field Correction) – Auto, Manual, External Correction
Highest Temperature Spot Tracking – Yes
Standby Mode – Yes
Refresh rate – 50 Hz
Aperture – F1.0
Resolution – 384×288
Detection Range – 897 m
NETD – Less than 35 mk (@25°C), F#=1.0
Lens (focal length) – 19 mm
Power – 5 VDC/2 A, 1.5 W
Field of view (H × X) – 13.8° × 10.4° (H × V)
Digital zoom – 2×, 4×, 8×
Monitor – 1280×960, 0.4 inch, LCOS
Imaging palettes – Black Hot, White Hot, Red Hot, Fusion
Storage – Built-in memory module (8 GB)
Record Video – On-board video recording
Capture Snapshot – Yes
Battery Type – Built-in rechargeable Lithium battery
Wi-Fi – Yes
CVBS Output – Yes (via USB)
Battery Operating Time – More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
Battery Capacity Display – Yes
Weight – 310 g (0.68 lb)
Working Temperature/ Humidity – -20°C to 55°C (-4°F to 131°F)
Overall Dimensions – 171 × 61 × 57 mm (6.73 × 2.4 × 2.2 in)
Protection Level – IP67
