AGM TAIPAN TM15-384

Original price was: $1,359.00.Current price is: $1,200.00.

-

Category:
Description

DESCRIPTION AND FEATURES

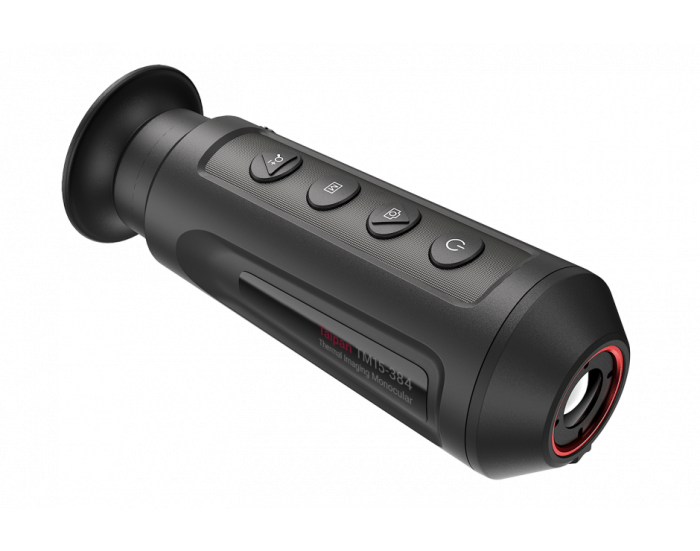

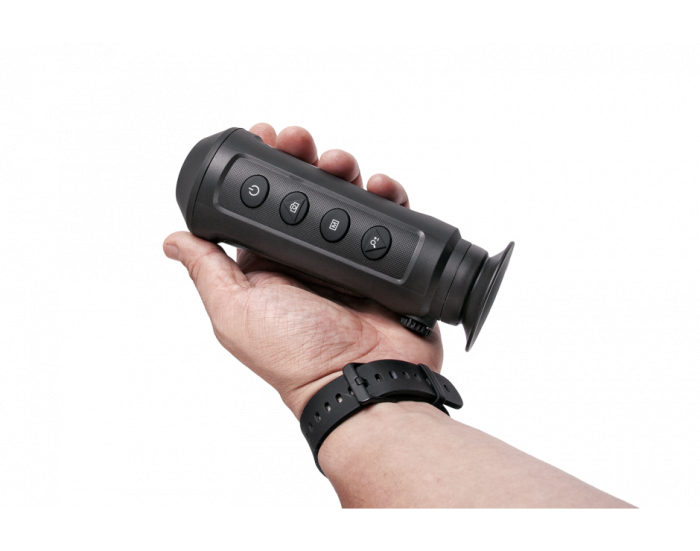

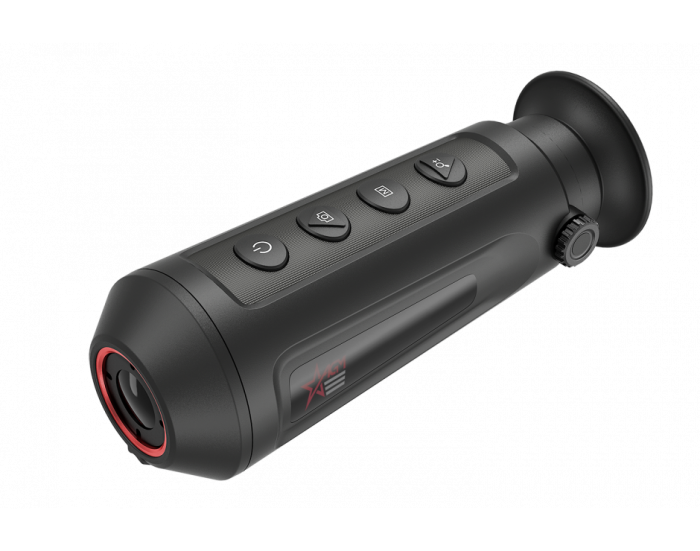

The Taipan handheld observational thermal monocular is equipped with a 384×288 infrared detector and a 1280×960 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.





FUNCTIONS:

Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.

Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.

Mode Switch:
Device supports pallet switch and distance measurement.

Storage:
Built-in memory module supports video recording/snapshot capturing.

Digital Zoom:
Device supports 1×, 2×, 4×, and 8× digital zoom.

Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.


  • 384×288 resolution, 12 μm, high sensitivity detector
  • Adaptive AGC, DDE, 3D DNR
  • 1280 × 960 resolution 0.4-inch LCOS display
  • Built-in rechargeable Lithium battery
  • More than 7.5 hours continuous running (with Wi-Fi hotspot function off)
  • Wi-Fi hotspot
  • Type-C interface
  • Limited 3-year warranty

SPECIFICATIONS


Interface – USB Type-C

Pixel Interval – 12 μm

Multi Language menu – Yes

Drop Test Height – 1.5 m (4.9 feet)

Detector type – Vanadium Oxide Uncooled Focal Plane Arrays

Response Waveband – 8μm to 14μm

FFC (Flat Field Correction) – Auto, Manual, External Correction

Highest Temperature Spot Tracking – Yes

Standby Mode – Yes

Refresh rate – 50 Hz

Aperture – F1.0

Resolution – 384×288

Detection Range – 708 m

NETD – Less than 35 mk (@25°C), F#=1.0

Lens (focal length) – 15 mm

Power – 5 VDC/2 A, 1.5 W

Field of view (H × X) – 17.5° × 13.1°

Digital zoom – 2×, 4×, 8×

Monitor – 1280×960, 0.4 inch, LCOS

Imaging palettes – Black Hot, White Hot, Red Hot, Fusion

Storage – Built-in memory module (8 GB)

Record Video – On-board video recording

Capture Snapshot – Yes

Battery Type – Built-in rechargeable Lithium battery

Wi-Fi – Yes

CVBS Output – Yes (via USB)

Battery Operating Time – More than 7.5 hours continuous running (with Wi-Fi hotspot function off)

Battery Capacity Display – Yes

Weight – 290 g (0.64 lb)

Working Temperature/ Humidity – -20°C to 55°C (-4°F to 131°F)

Overall Dimensions – 158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)

Protection Level – IP67
