Description

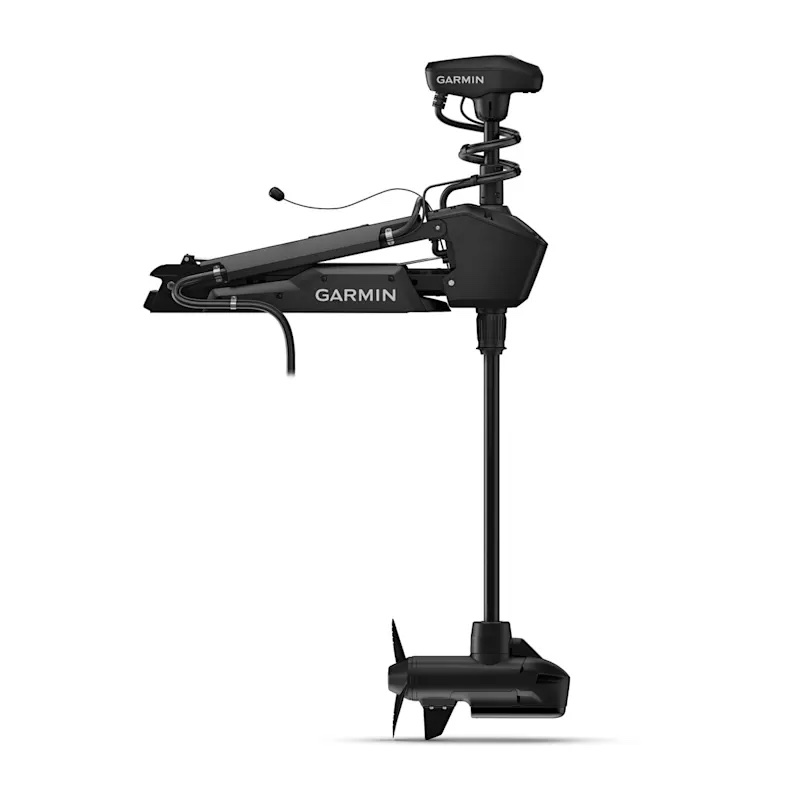

Force® Pro Trolling Motor

Black Trolling Motor with Built-In GT56UHD-TR Transducer



Choosing the Appropriate Force Trolling Motor Shaft Length



General
COLOR black
FOR USE IN freshwater, brackish water and saltwater
MOUNT STYLE scissor-style mount
MAX THRUST 100 lbs per ISO 13342 using high efficiency propeller at 36 V
80 lbs per ISO 13342 using high efficiency propeller at 24 V
VOLTAGE 24 V or 36 V
ELECTRIC STEERING
LIFT-ASSIST dual gas springs
BUILT-IN HEADING SENSOR
BUILT-IN GPS yes (dual frequency GPS)
WARRANTY 3-year, limited lifetime on shaft
WATER RATING IPX7
MOUNTING LOCATION bow
WIRELESS REMOTE yes (included)
FOOT PEDAL COMPATIBLE yes (included)
BATTERY INDICATOR
VARIABLE SPEED CONTROL yes (20 steps)
LIGHTED DIRECTION INDICATOR
DECK STABILIZER yes (included)
QUATIX REMOTE CONTROL SUPPORTED
MANUAL REVERSE CONTROL





Sonar Features
FREQUENCIES SUPPORTED Traditional: High-wide CHIRP (150-240 kHz)ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz
TRANSMIT POWER Traditional: 350 W
ClearVü/SideVü: 500 W
MAXIMUM DEPTH CHIRP sonar: 800′ freshwater
ClearVü: 400′
SideVü: 500′
DEPTH/SPEED/TEMPERATURE depth and temperature
NUMBER OF PINS 12-pin (orange connector)





Autopilot Features
ROUTE FOLLOWING
ANCHOR LOCK
SMART ANCHOR LOCK FEATURES
ANCHOR LOCK JOG
HEADING HOLD
CRUISE CONTROL
GESTURE FEATURES yes (manual+, heading hold+, jog+)





Foot Pedal Features
DIMENSIONS 12″ L x 9″ W x 4 1/2″ H
WIRELESS COMMUNICATION
POWER INSTALLATION 12 V/24 V/36 V wired or battery powered (2 AA)
AA BATTERY LIFE 1 full season
WATER RATING IPX7
ADJUSTABLE PEDAL RESISTANCE





Remote Features
DISPLAY SIZE 1.2″ (30.2 mm) diameter
DISPLAY RESOLUTION 240 x 240 pixels
DISPLAY TYPE color, sunlight-visible, transflective memory-in-pixel (MIP)
CHARTPLOTTER USER-PROGRAMMABLE KEYS
AUTOPILOT FEATURE CONTROL
WATER RATING IPX7
BATTERY LIFE typical use with backlight at low, 43 weeks
FLOATS
