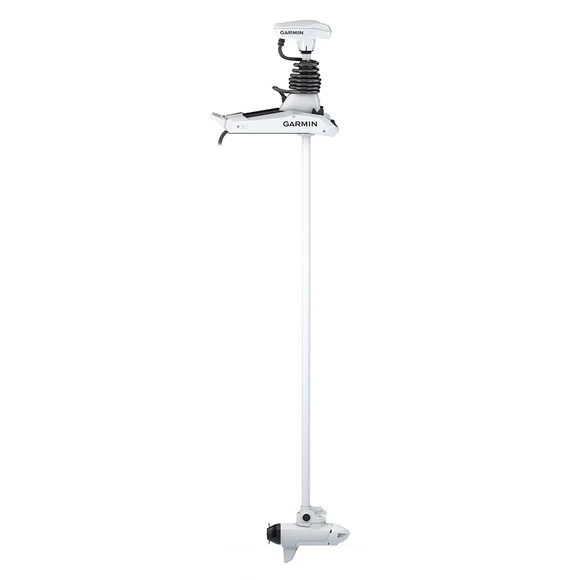

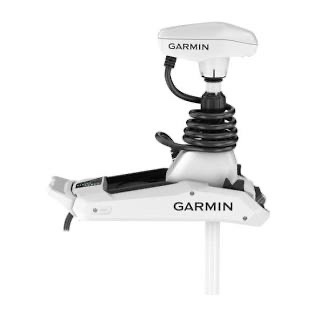

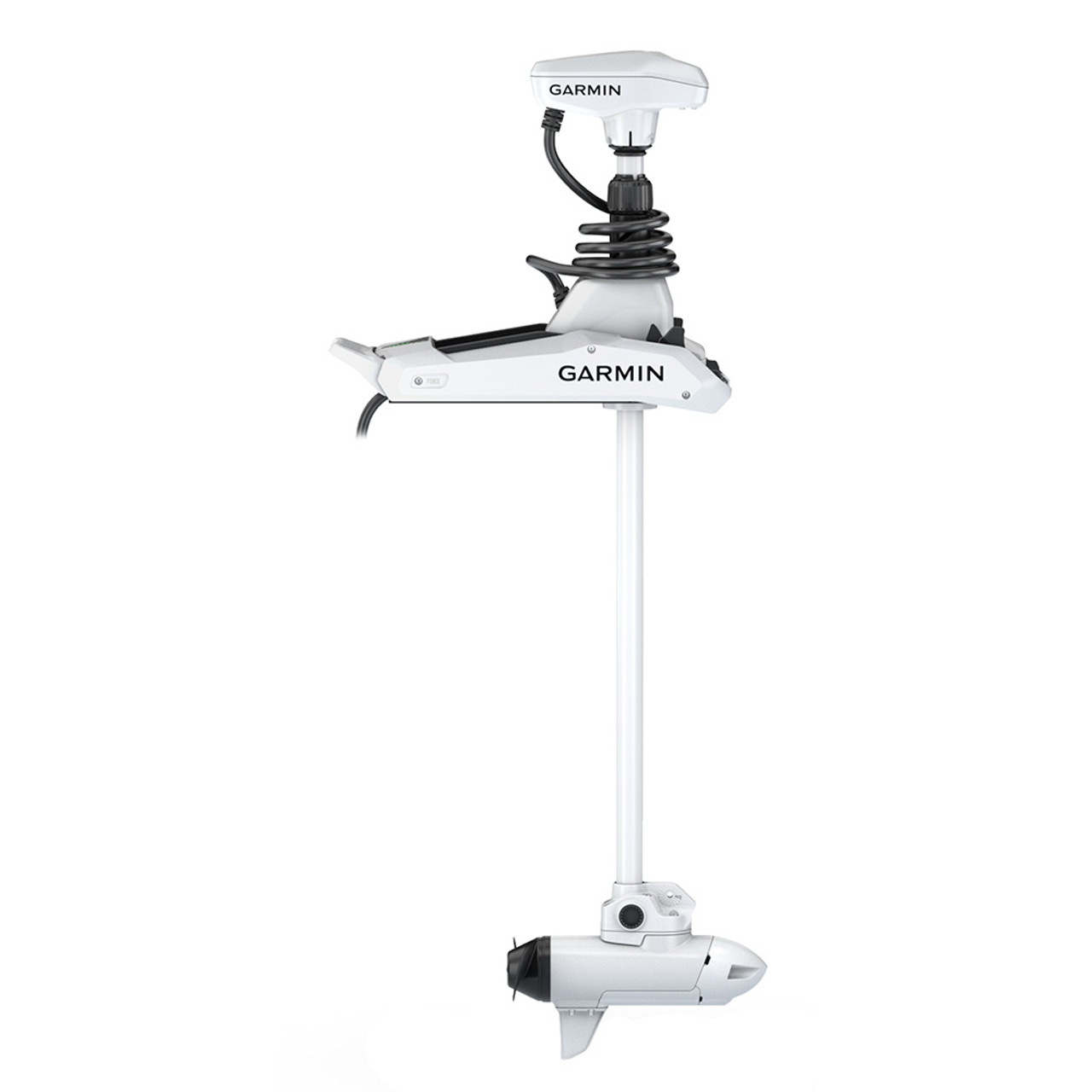

Garmin Force® Kraken Trolling Motor
$3,599.99 – $4,299.99
-
Description

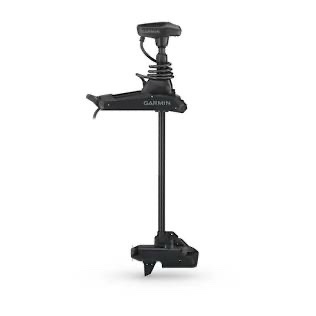

Black Trolling Motor comes with the GT56UHD-TR Transducer, white trolling motors do not come with a transducer.
Choosing the Appropriate Force Trolling Motor Shaft Length
General | |
| COLOR | black or white |
|---|---|
| FOR USE IN | freshwater, brackish water and saltwater |
| MOUNT STYLE | pivot-style mount |
| MAX THRUST | 100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 V |
| VOLTAGE | 24 V or 36 V |
| ELECTRIC STEERING | |
| BUILT-IN HEADING SENSOR | |
| BUILT-IN GPS | yes (dual frequency GPS) |
| WARRANTY | 3-year, limited lifetime on shaft |
| WATER RATING | IPX7 |
| MOUNTING LOCATION | bow |
| WIRELESS REMOTE | yes (included) |
| FOOT PEDAL COMPATIBLE | |
| BATTERY INDICATOR | |
| VARIABLE SPEED CONTROL | yes (20 steps) |
| LIGHTED DIRECTION INDICATOR | |
| QUATIX REMOTE CONTROL SUPPORTED | |
| MANUAL REVERSE CONTROL | |
Sonar Features | |
| FREQUENCIES SUPPORTED | BLACK ONLY: Traditional: High-wide CHIRP (150-240 kHz) BLACK ONLY: ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz |
|---|---|
| TRANSMIT POWER | BLACK ONLY: Traditional: 350 W BLACK ONLY: ClearVü/SideVü: 500 W |
| MAXIMUM DEPTH | BLACK ONLY: CHIRP sonar: 800 ft freshwater BLACK ONLY: ClearVü: 400 ft; SideVü: 500 ft |
| DEPTH/SPEED/TEMPERATURE | depth and temperature |
| NUMBER OF PINS | 12-pin (orange connector) |
| LIVESCOPE CABLE INTEGRATION | BLACK OR WHITE: yes (LiveScope transducer and Kraken Mounting Bracket purchased required) |
Autopilot Features | |
| ROUTE FOLLOWING | |
|---|---|
| ANCHOR LOCK | |
| SMART ANCHOR LOCK FEATURES | |
| ANCHOR LOCK JOG | |
| HEADING HOLD | |
| CRUISE CONTROL | |
| GESTURE FEATURES | yes (manual+, heading hold+, jog+) |
Remote Features | |
| DISPLAY SIZE | 1.2″ (30.2 mm) diameter |
|---|---|
| DISPLAY RESOLUTION | 240 x 240 pixels |
| DISPLAY TYPE | color, sunlight-visible, transflective memory-in-pixel (MIP) |
| CHARTPLOTTER USER-PROGRAMMABLE KEYS | |
| AUTOPILOT FEATURE CONTROL | |
| WATER RATING | IPX7 |
| BATTERY LIFE | typical use with backlight at low, 43 weeks |
| FLOATS | |
Additional Information
| Shaft Length | 48", 63", 75", 90" |
|---|---|
| Color | White, Black |
