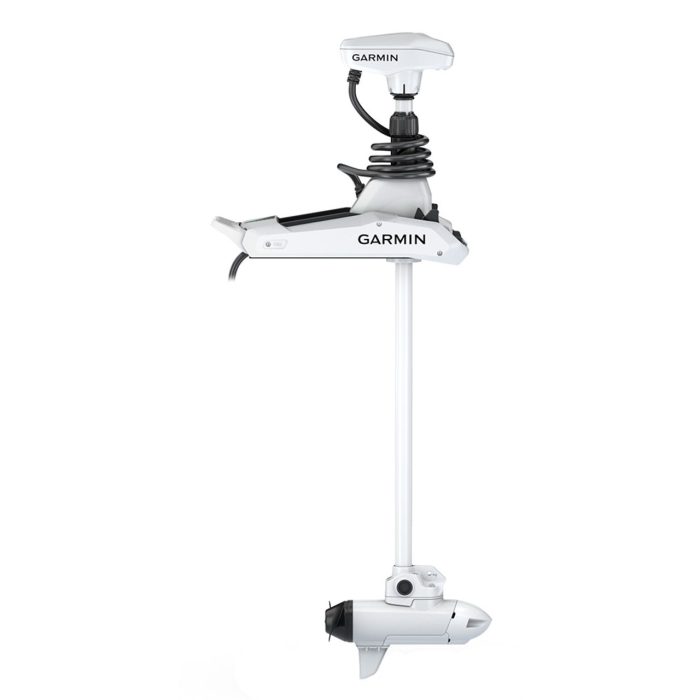

Garmin Force® Kraken Trolling Motor

Name: Garmin Force® Kraken Trolling Motor
Brand: Garmin
SKU: 25222
Availability: InStock

Price range: $3,999.99 through $6,499.99

SKU: N/A Category: Garmin Force Kraken Brand: Garmin

Black Trolling Motor comes with the GT56UHD-TR Transducer, white trolling motors do not come with a transducer.

General
COLOR	black or white
FOR USE IN	freshwater, brackish water and saltwater
MOUNT STYLE	pivot-style mount
MAX THRUST	100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 V
VOLTAGE	24 V or 36 V
ELECTRIC STEERING
BUILT-IN HEADING SENSOR
BUILT-IN GPS	yes (dual frequency GPS)
WARRANTY	3-year, limited lifetime on shaft
WATER RATING	IPX7
MOUNTING LOCATION	bow
WIRELESS REMOTE	yes (included)
FOOT PEDAL COMPATIBLE
BATTERY INDICATOR
VARIABLE SPEED CONTROL	yes (20 steps)
LIGHTED DIRECTION INDICATOR
QUATIX REMOTE CONTROL SUPPORTED
MANUAL REVERSE CONTROL

Sonar Features
FREQUENCIES SUPPORTED	BLACK ONLY: Traditional: High-wide CHIRP (150-240 kHz) BLACK ONLY: ClearVu/SideVu: 455 kHz, 800 kHz, 1000 kHz
TRANSMIT POWER	BLACK ONLY: Traditional: 350 W BLACK ONLY: ClearVü/SideVü: 500 W
MAXIMUM DEPTH	BLACK ONLY: CHIRP sonar: 800 ft freshwater BLACK ONLY: ClearVü: 400 ft; SideVü: 500 ft
DEPTH/SPEED/TEMPERATURE	depth and temperature
NUMBER OF PINS	12-pin (orange connector)
LIVESCOPE CABLE INTEGRATION	BLACK OR WHITE: yes (LiveScope transducer and Kraken Mounting Bracket purchased required)

FLOATS
Remote Features
DISPLAY SIZE	1.2″ (30.2 mm) diameter
DISPLAY RESOLUTION	240 x 240 pixels
DISPLAY TYPE	color, sunlight-visible, transflective memory-in-pixel (MIP)
CHARTPLOTTER USER-PROGRAMMABLE KEYS
AUTOPILOT FEATURE CONTROL
WATER RATING	IPX7
BATTERY LIFE	typical use with backlight at low, 43 weeks

Shaft Length	48", 63", 75", 90", 110"
Color	White, Black
